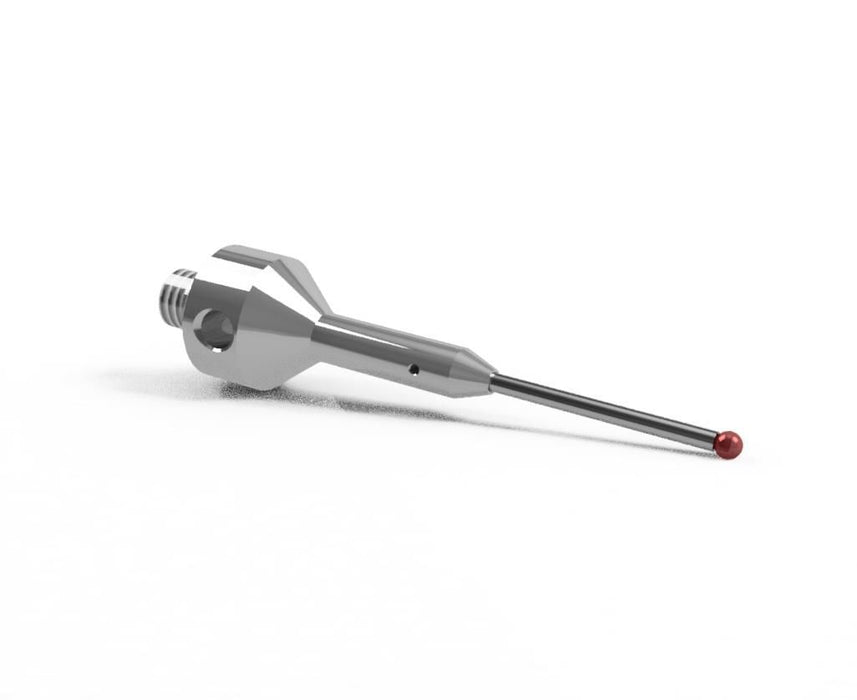

SM5 S135 044 RCA - Stepped M5 CMM Stylus 1.35mm Ruby Ball, 44mm Tungsten Carbide Stem, EWL 19mm
$52.00 USD
SKU SM5 S135 044 RCA
- Thread Size: M5
- Ball Size: 1.35 mm Ball
- Ball Material: Ruby
- Stem Length: 44.0 mm
- Stem Material: Tungsten Carbide
- Effective Working Length: 19.0 mm

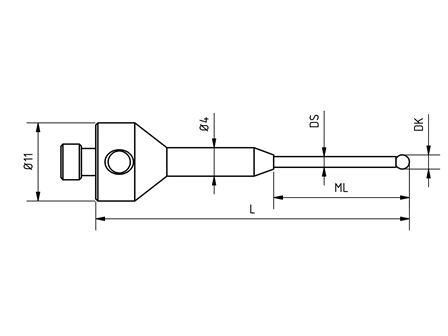

- DK: 1.35 mm
- L: 44.0 mm
- ML: 19.0 mm
- DS: 1.0 mm
