SM4 010 020 RCA - Straight M4 CMM Stylus 1mm dia Ruby Ball, 20mm Tungsten Carbide Stem, EWL 10.5 mm
$70.00 USD
SKU SM4 010 020 RCA
- Thread Size: M4
- Ball Size: 1.0 mm Ball
- Ball Material: Silicone Nitride
- Stem Length: 20.0 mm
- Stem Material: Tungsten Carbide
- Effective Working Length: 10.5 mm

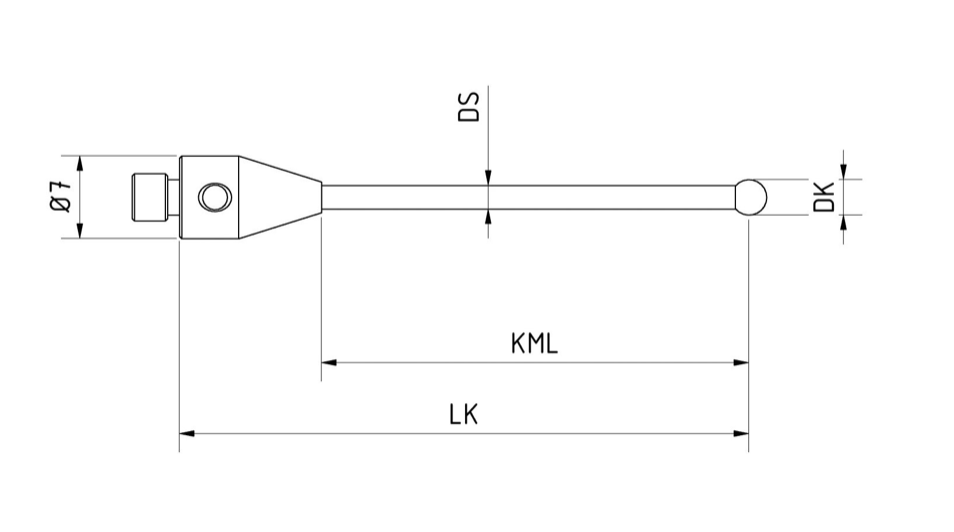

- DK: 1.0 mm
- LK: 20.0 mm
- KML: 10.5 mm
-
DS: 0.8 mm
