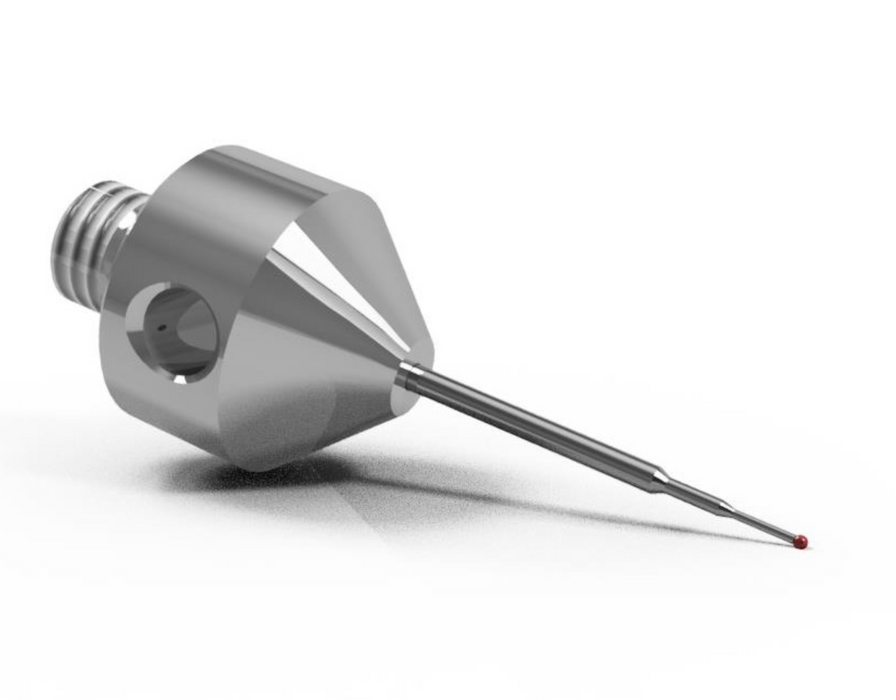

SM5 SM03 025 RCA - Stepped Micro M5 CMM Stylus 0.3mm Ruby Ball, 25mm Tungsten Carbide Stem, EWL 1.3mm

$107.00 USD
SKU
  • Thread Size: M5
  • Ball Size: 0.30 mm Ball
  • Ball Material: Ruby
  • Stem Length: 25 mm
  • Stem Material: Carbide
  • Effective Working Length: 1.3 mm

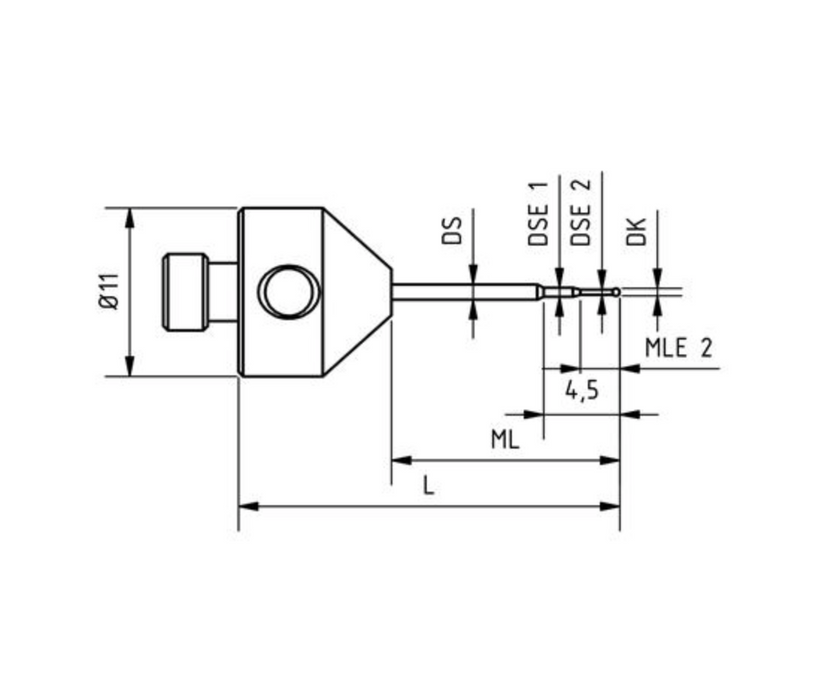

  • DK: 0.30 mm
  •  1 mm
  • DSE: 0.5/0.23 mm
  • L: 25 mm
  • ML: 15 mm
  • MLE: 4.5 mm
