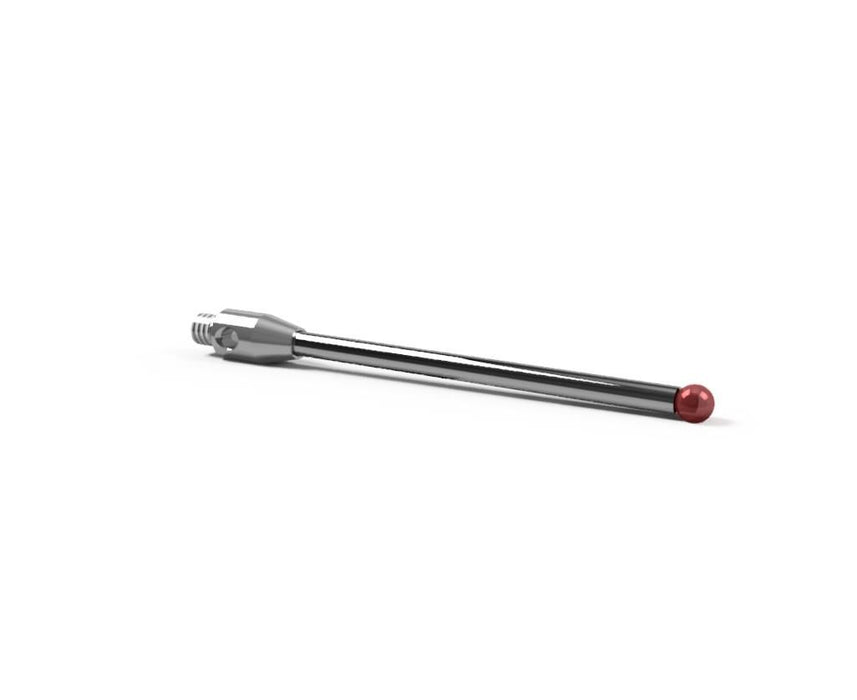

SM2 015 020 RSS - Straight M2 CMM Stylus 1.5mm Ruby Ball, 20mm Steel Stem, EWL 15mm
$32.00 USD
SKU SM2 015 020 RSS
- Thread Size: M2
- Ball Size: 1.5 mm Ball
- Ball Material: Ruby
- Stem Length: 20.0 mm
- Stem Material: Steel
- Effective Working Length: 15.0 mm

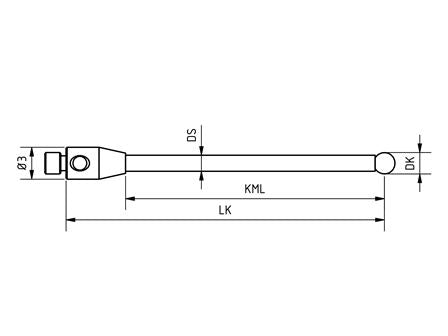

- DK: 1.5 mm
- LK: 20.0 mm
- KML: 15.0 mm
-
DS: 1.0 mm
