SM3 030 085 SCA - Straight M3 CMM Stylus, Ø3.0mm Silicon Ball, 85mm Tungsten Carbide Stem, EWL 78mm

$80.00 USD
SKU SM3 030 085 SCA
  • Thread Size: M3
  • Ball Size: 3.0 mm Ball
  • Ball Material: Silicon Nitrite
  • Stem Length: 85.0 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 78.0 mm

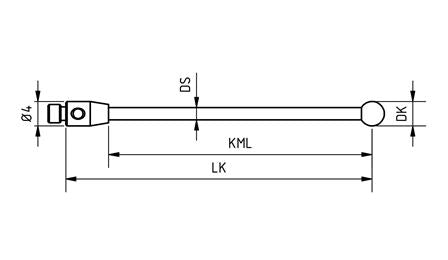

  • DK: 3.0 mm
  •  85.0 mm
  •  78.0 mm
  •  2.0 mm

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters.
