SM3 M012 022 CCA - Stepped Micro M3 CMM Stylus 0.12mm Carbide Ball, 22mm Tungsten Carbide Stem, EWL 15mm

$314.00 USD
SKU SM3 M012 022 CCA
  • Thread Size: M3
  • Ball Size: 0.12 mm Ball
  • Ball Material: Carbide
  • Stem Length: 22.0 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15.0 mm

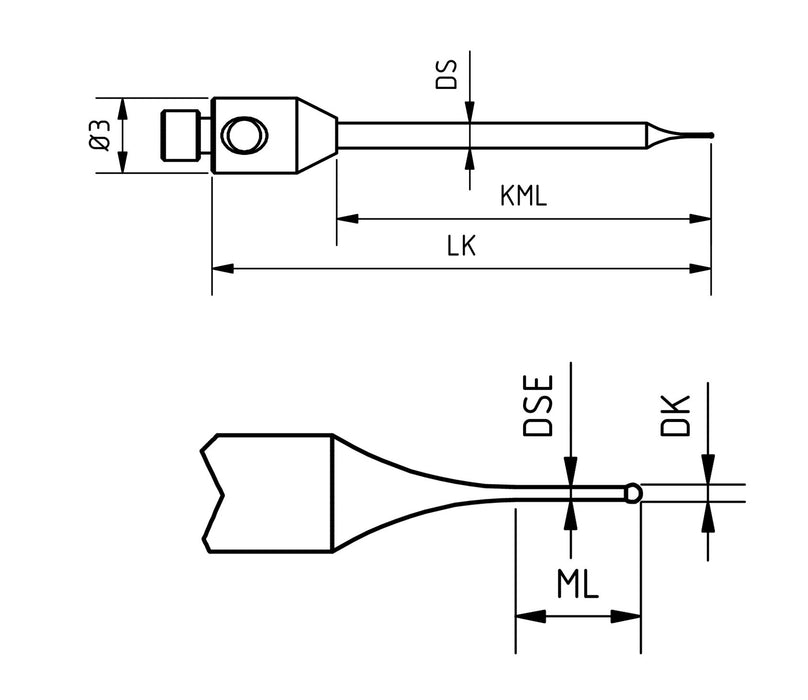

  • DK: 0.12 mm
  •  22.0 mm
  •  15.0 mm
  •  1.0 mm
  •  1.0 mm
  •  0.09 mm

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters.
