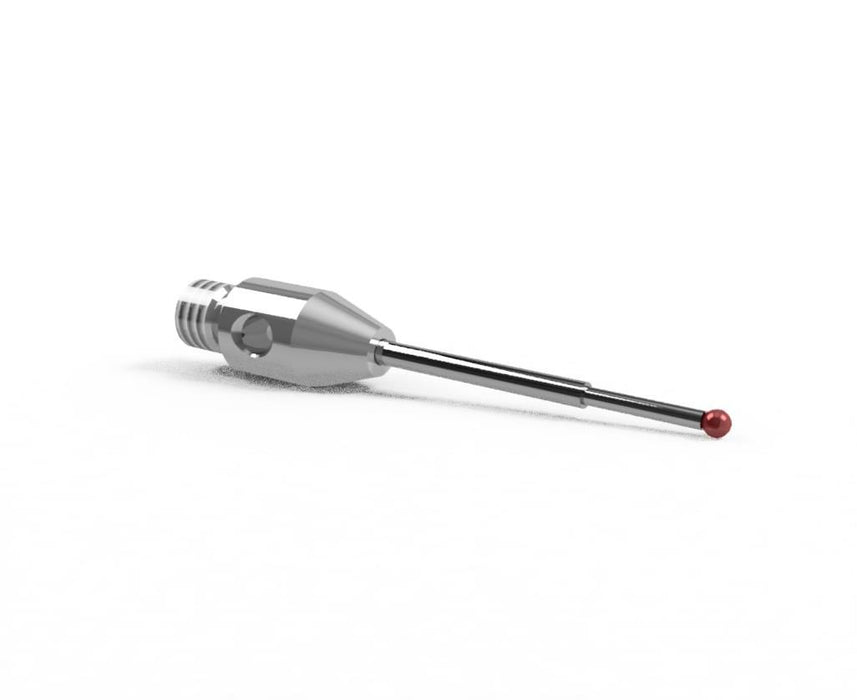

SM3 S10 015 RCA - Stepped M3 CMM Stylus 1.0mm Ruby Ball, 15mm Tungsten Carbide Stem, EWL 8mm
$38.00 USD
SKU SM3 S10 015 RCA
- Thread Size: M3
- Ball Size: 1.0 mm Ball
- Ball Material: Ruby
- Stem Length: 15.0 mm
- Stem Material: Tungsten Carbide
- Effective Working Length: 8.0 mm

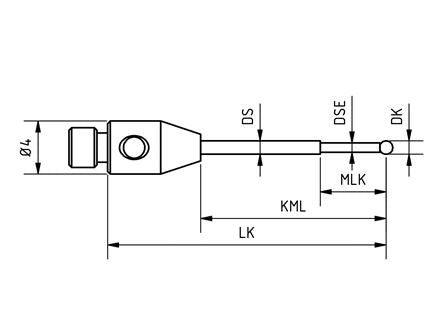

- DK: 1.0 mm
- LK: 15.0 mm
- KML: 8.0 mm
- MLK: 5.0 mm
- DS: 1 mm
- DSE: 0.7 mm
