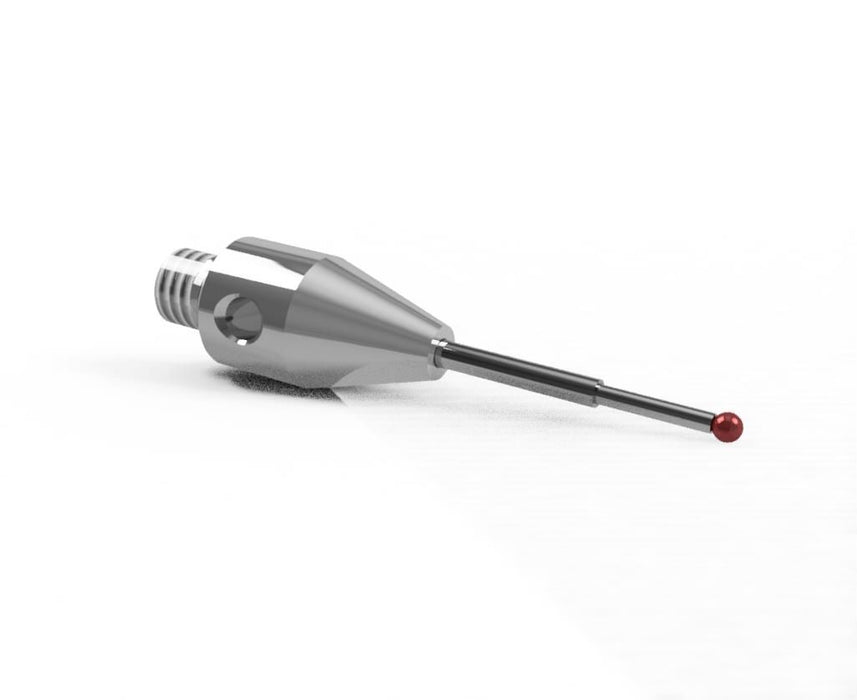

SM3 XS08 020 RCA - Stepped M3 XXT CMM Stylus 0.8mm Ruby Ball, 20mm Tungsten Carbide Stem, EWL 11mm
$59.00 USD
SKU SM3 X08 020 RCA
- Thread Size: M3
- Ball Size: 0.8 mm Ball
- Ball Material: Ruby
- Stem Length: 20.0 mm
- Stem Material: Tungsten Carbide
- Effective Working Length: 11.0 mm

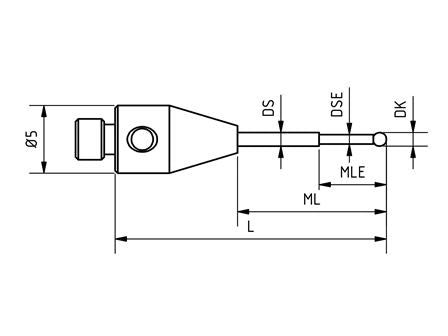

- DK: 0.6 mm
- L: 20.0 mm
- ML: 11.0 mm
- MLE: 4.6mm
- DS: 1.0 mm
- DSE: 0.5 mm
