SM4 010 030 SCA - Straight M4 CMM Stylus 1mm Silicone Nitride Ball, 30mm Tungsten Carbide Stem, EWL 18mm

$85.00 USD
SKU SM4 010 030 SCA
  • Thread Size: M4
  • Ball Size: 1.0 mm Ball
  • Ball Material: Silicone Nitride
  • Stem Length: 30.0 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 18.0 mm

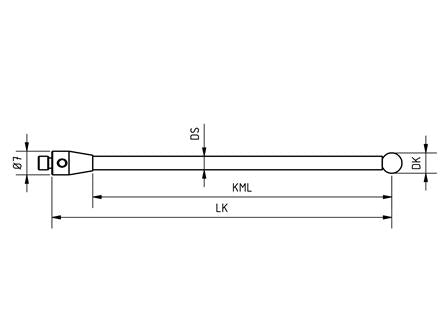

  • DK: 1.0 mm
  •  30.0 mm
  •  18.0 mm
  •  0.8 mm

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters.
