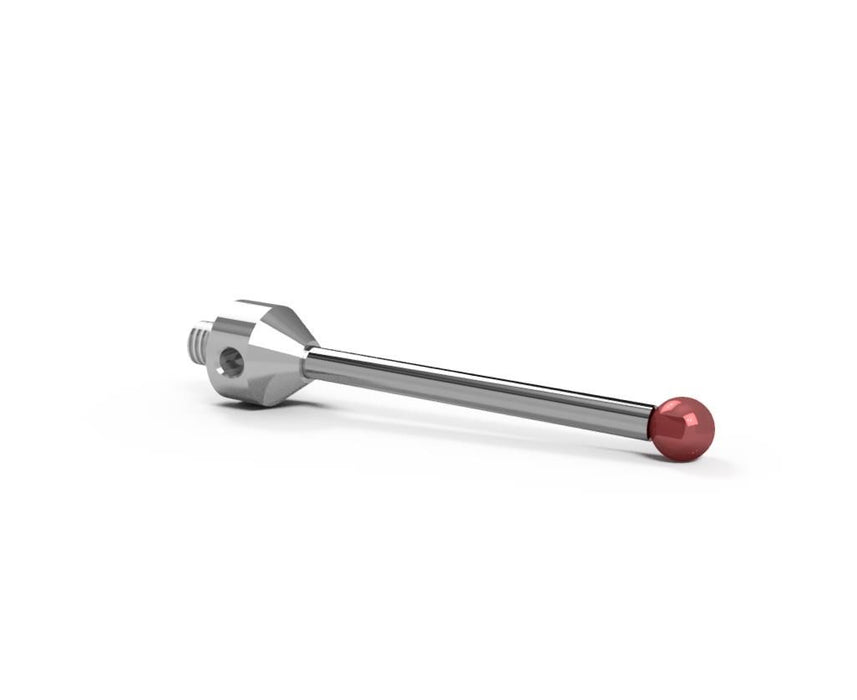

SM5 015 025 RCA - Straight M5 CMM Stylus 1.5mm Ruby Ball, 25mm Tungsten Carbide Stem, EWL 15mm

$41.00 USD
SKU SM5 015 025 RCA
  • Thread Size: M5
  • Ball Size: 1.5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 25.0 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15.0 mm
  • DK: 1.5 mm
  •  25.0 mm
  •  15.0 mm
  •  1.0 mm

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.
