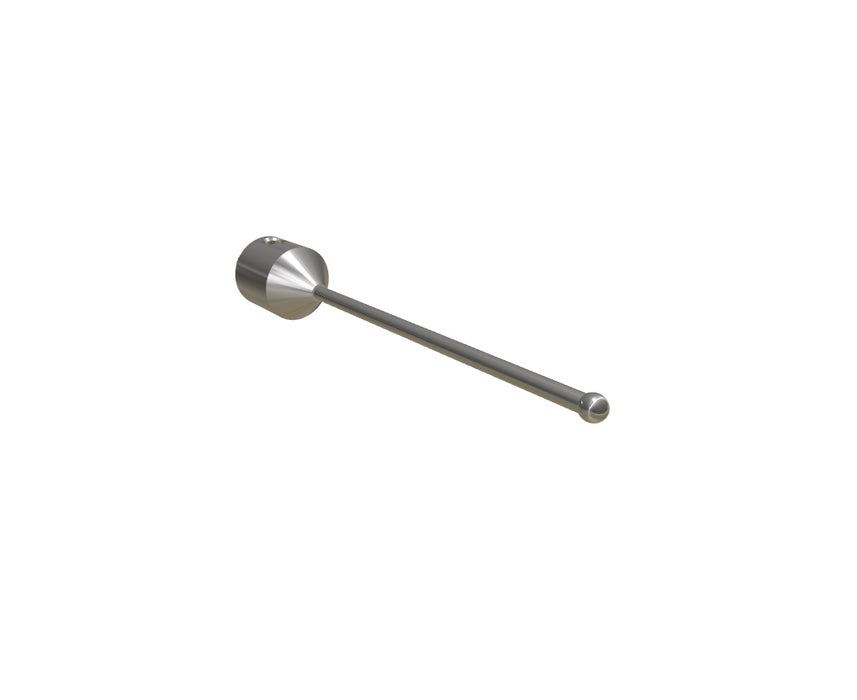

SM5 028 058 CCA - Straight M5 CMM Stylus 2.8mm Carbide Ball, 58mm Tungsten Carbide Stem, EWL 48mm

$149.00 USD
SKU SM5 028 058 CCA
  • Thread Size: M5
  • Ball Size: 2.8 mm Ball
  • Ball Material: Carbide
  • Stem Length: 58.0 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 48.0 mm

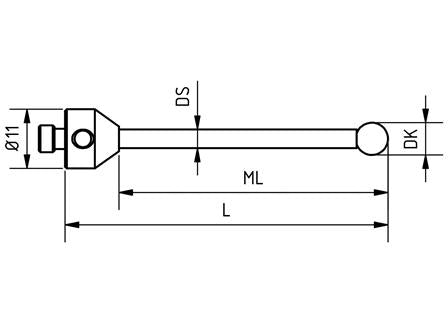

  • DK: 2.8 mm
  •  58.0 mm
  •  48.0 mm
  •  2.0 mm

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters.
