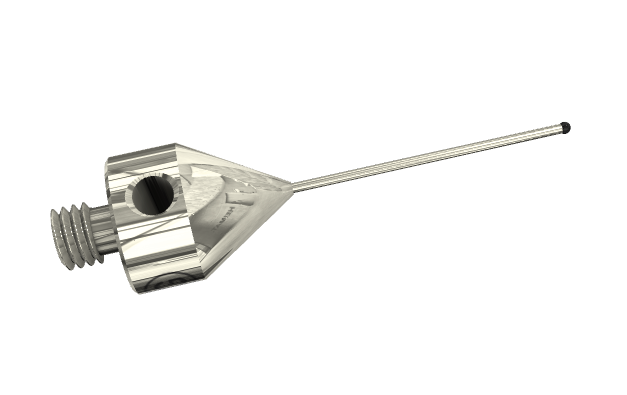

SM5 S10 035 SCA - Stepped M5 CMM Stylus 1 mm Silicone Nitrite Ball, 35 mm Tungsten Carbide Stem, EWL 5mm

$110.00 USD
SKU SM5 S10 032 SCA
  • Thread Size: M5
  • Ball Size: 1.0 mm Ball
  • Ball Material: Silicone Nitrite
  • Stem Length: 35.0 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 5.0 mm
  • DK: 1.0 mm
  •  35.0 mm
  •  12.0 mm
  • MLE: 5.0 mm
  •  1.0 mm
  •  0.8 mm

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.
