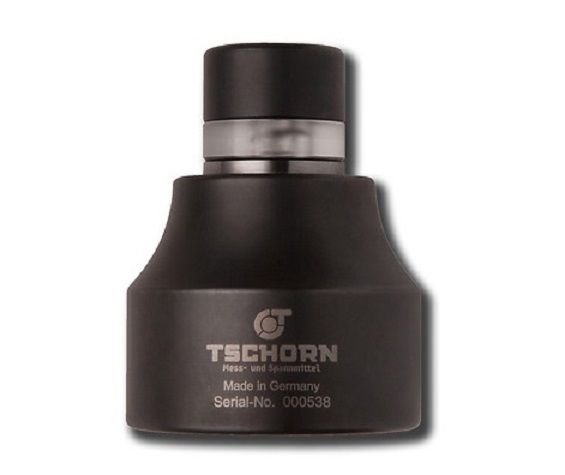

002050200 - Tschorn Optical Zero Setter 50mm with Magnets

$190.00 USD
  • Height: 50 mm
  • Housing Diameter: 39 mm
  • Palper Diameter: 19 mm
  • Tolerance: 50.00 mm +/- 0.01 mm

002050200 Tschorn Zero Setter Optical 50 mm for use on milling and turning machines

High precision zero point indicator with magnets so it can be mounted vertically as well as horizontally

For accurate position determination of workpiece surfaces or tool lengths in the Z direction on milling or turning machines. The device is placed on the workpiece. Then you carefully drive onto the device with the spindle stationary. As soon as the LED lights up, the reference dimension of 50 mm has been reached. A safety spring deflection of approx. 2 mm for driving over the 50 mm is built in.
