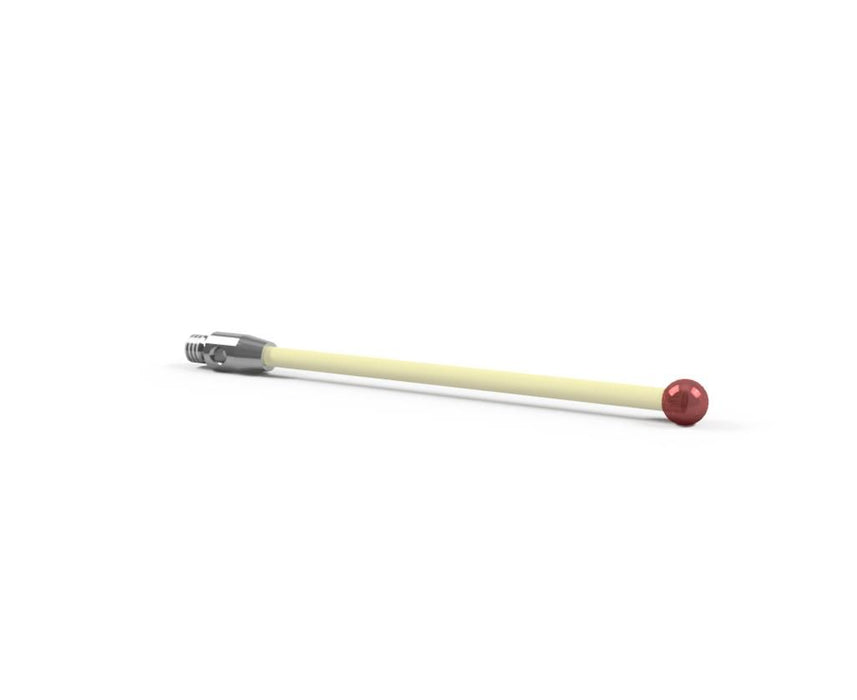

SM3 040 050 RCE - Straight M3 CMM Stylus, Ø4.0mm Ruby Ball, 50mm Ceramic Stem, EWL 43mm

$36.00 USD
SKU SM3 040 050 RCE
  • Thread Size: M3
  • Ball Size: 4.0 mm Ball
  • Ball Material: Ruby
  • Stem Length: 50.0 mm
  • Stem Material: Ceramic
  • Effective Working Length: 43.0 mm

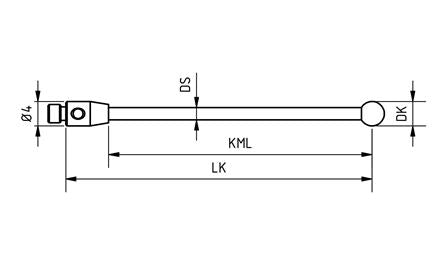

  • DK: 4.0 mm
  •  50.0 mm
  •  43.0 mm
  •  2.0 mm

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.
