SM3 080 050 RCA - Straight M5 CMM Stylus, Ø8.0mm Ruby Ball, 50mm Tungsten Carbide Stem, EWL 40mm

$84.00 USD
SKU SM3 080 050 RCA
  • Thread Size: M5
  • Ball Size: 8.0 mm Ball
  • Ball Material: Ruby
  • Stem Length: 50.0 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 40.0 mm

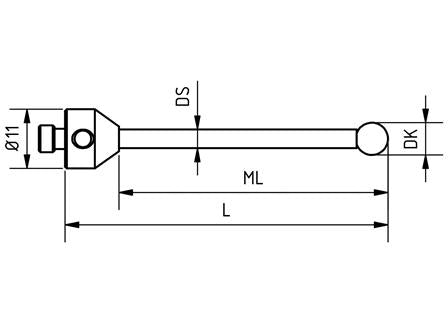

  • DK: 8.0 mm
  •  50.0 mm
  •  40.0 mm
  •  3.0 mm

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.
