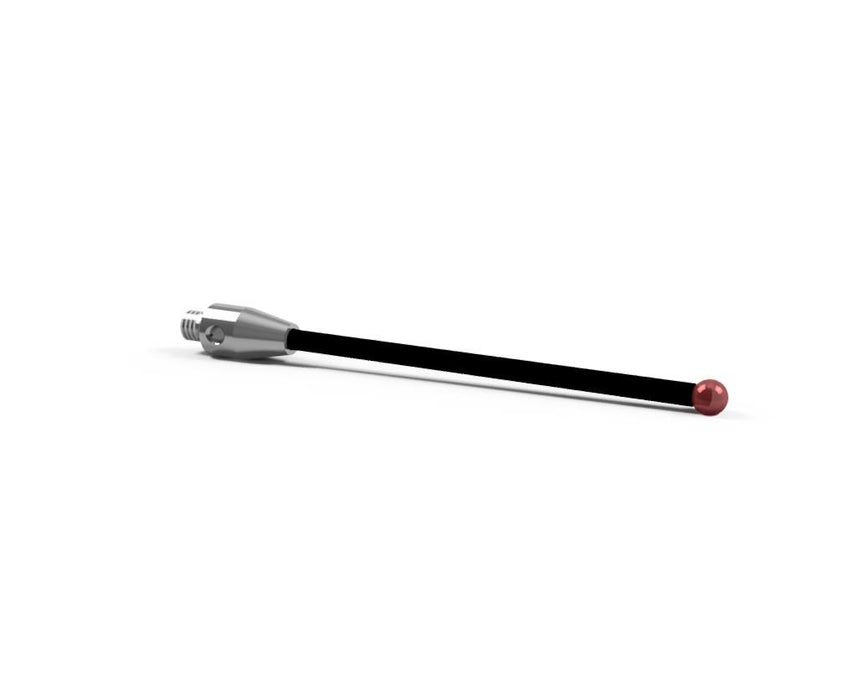

SM3 X80 100 RCF - Straight M3 XXT CMM Stylus 8.0mm Ruby Ball, 100mm Carbon Fiber Stem, EWL 100mm

$125.00 USD
SKU SM3 X80 100 RCF
  • Thread Size: M3 XXT
  • Ball Size: 8.0 mm Ball
  • Ball Material: Ruby
  • Stem Length: 100.0 mm
  • Stem Material: Carbon Fiber
  • Effective Working Length: 100.0 mm

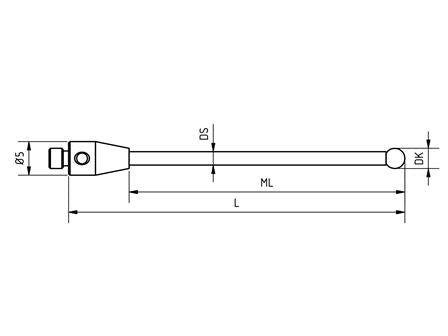

  • DK: 8.0 mm
  •  100.0 mm
  •  91.0 mm
  •  5.0 mm

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.
